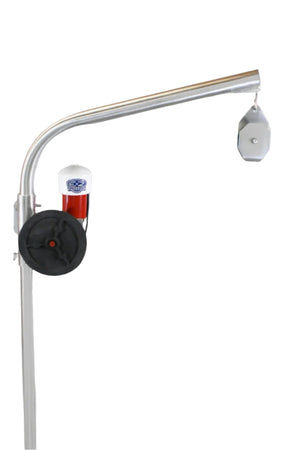

EZ-E40 Std 65" Tall sch40 1.5" Electric Pot/Trap Hauler

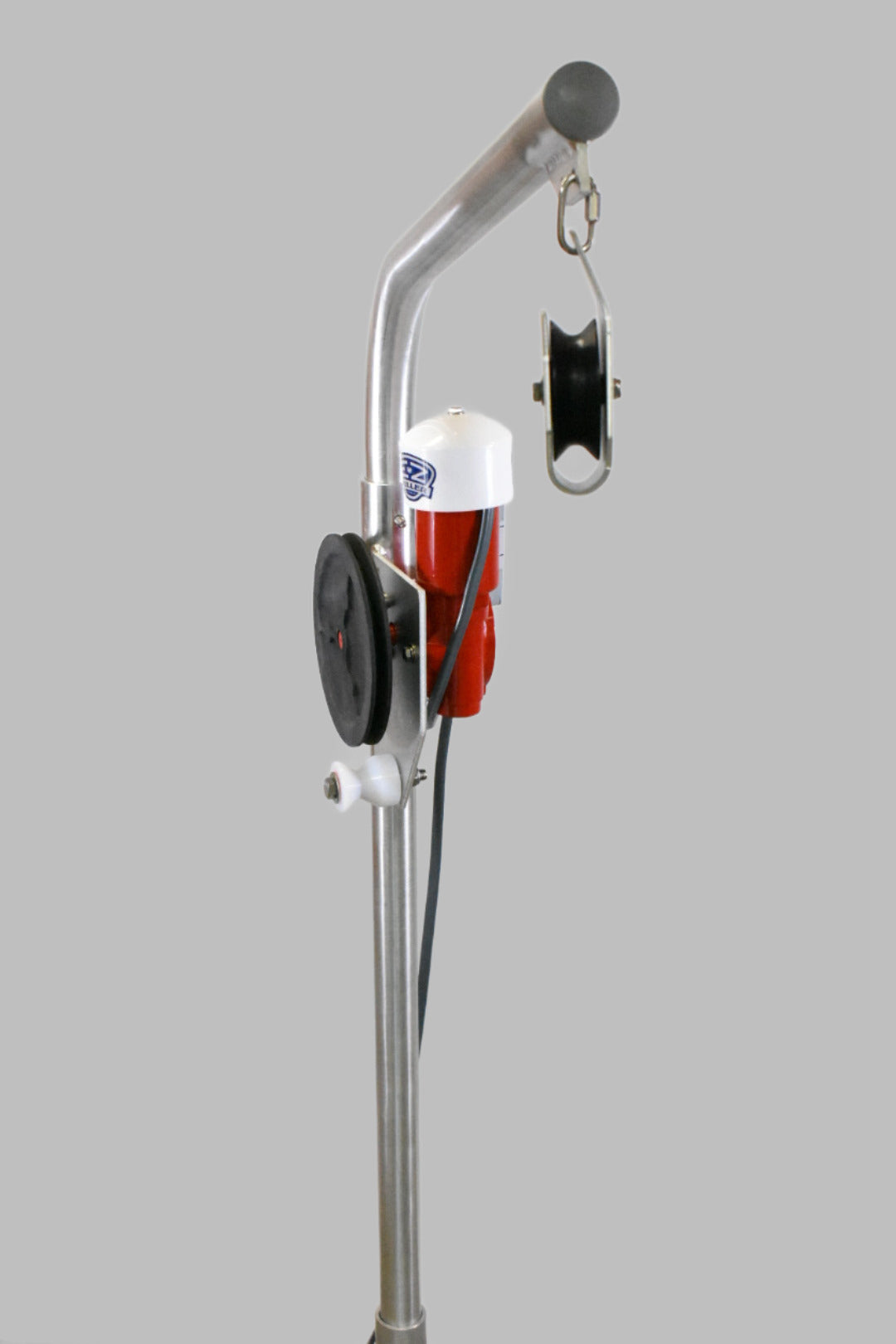

The 3-piece EZ-E40 is our Standard height 1.5” Sch 40 Electric Pot Hauler. The package includes our time tested water resistant 1.5 hp 601 Red express 12v motor / Permanently sealed cast aluminum gearbox containing roller bearings, 1 piece steel and bronze alloy gears in a synthetic oil bath for exceptional strength and long life. High amp 12v on/off switch assembly with a 14 ft. 8-gauge harness and 100 amp auto reset circuit breaker assembly. Anodized Aluminum sheave with machined UHMW v-roller assembly, EZ Puller open face aluminum crab block with s/s quick link and s/s davit pin.

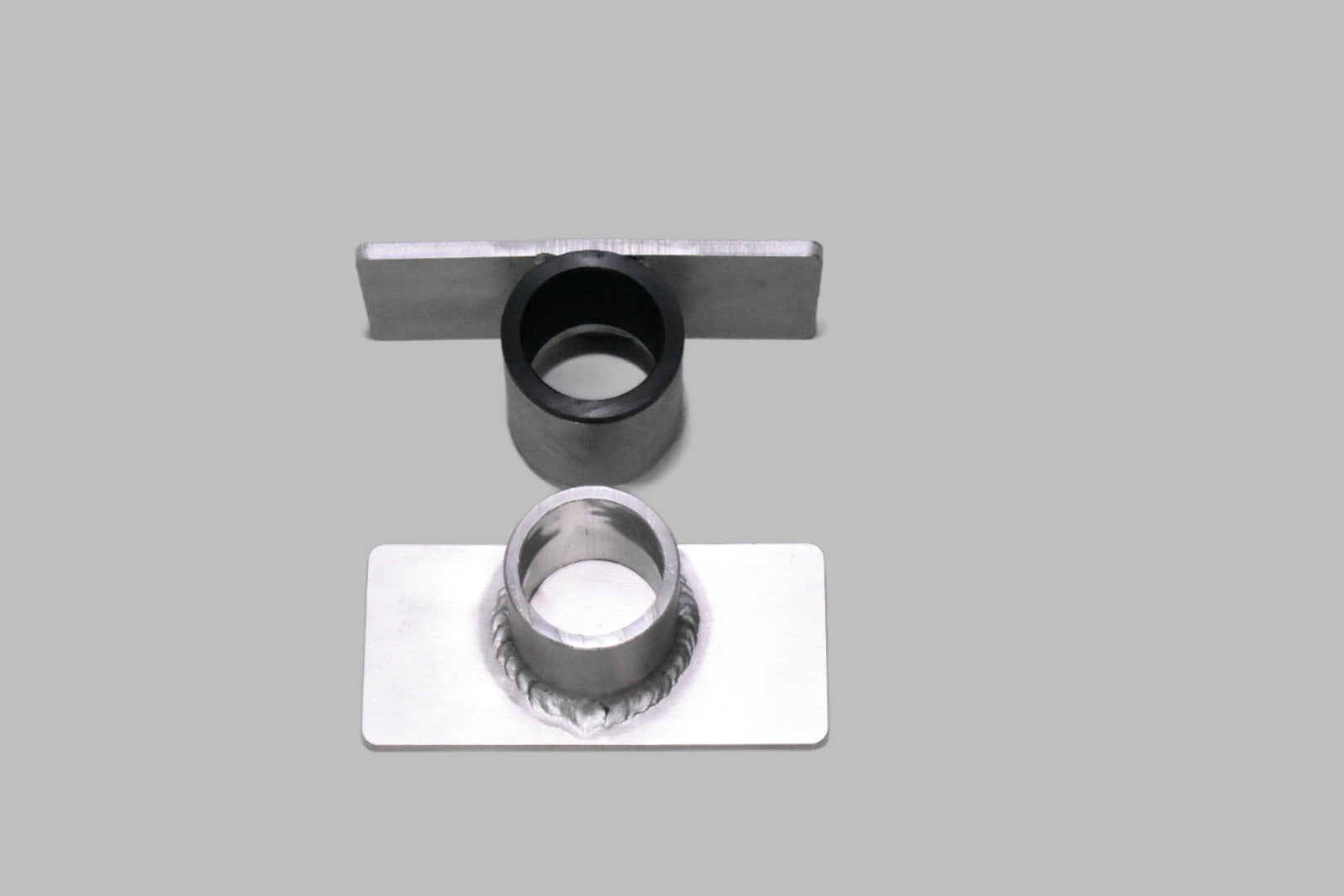

Includes our AMS104C Sleeved Flat Deck and AMS106 UHMW sleeved Gunnel Mounts.

Pulls line at up to 140 feet per minute with a lift capacity of 160lbs.

It accepts line sizes ¼” to ⅜”.

** Important mounts must have at least 22" spacing between upper and lower. **

Pulls line at 120 feet per minute with a pulling capacity of 125 pounds. It accepts line sizes ¼” to ⅜”.

Best for fishing the shallower bays and inlets.

The EZ-E40 davit unit is 65“ tall and has a reach of 27“.

The unit comes with a 1 year manufacturer defect warranty.

Does not include fasteners for installing the mounts.
