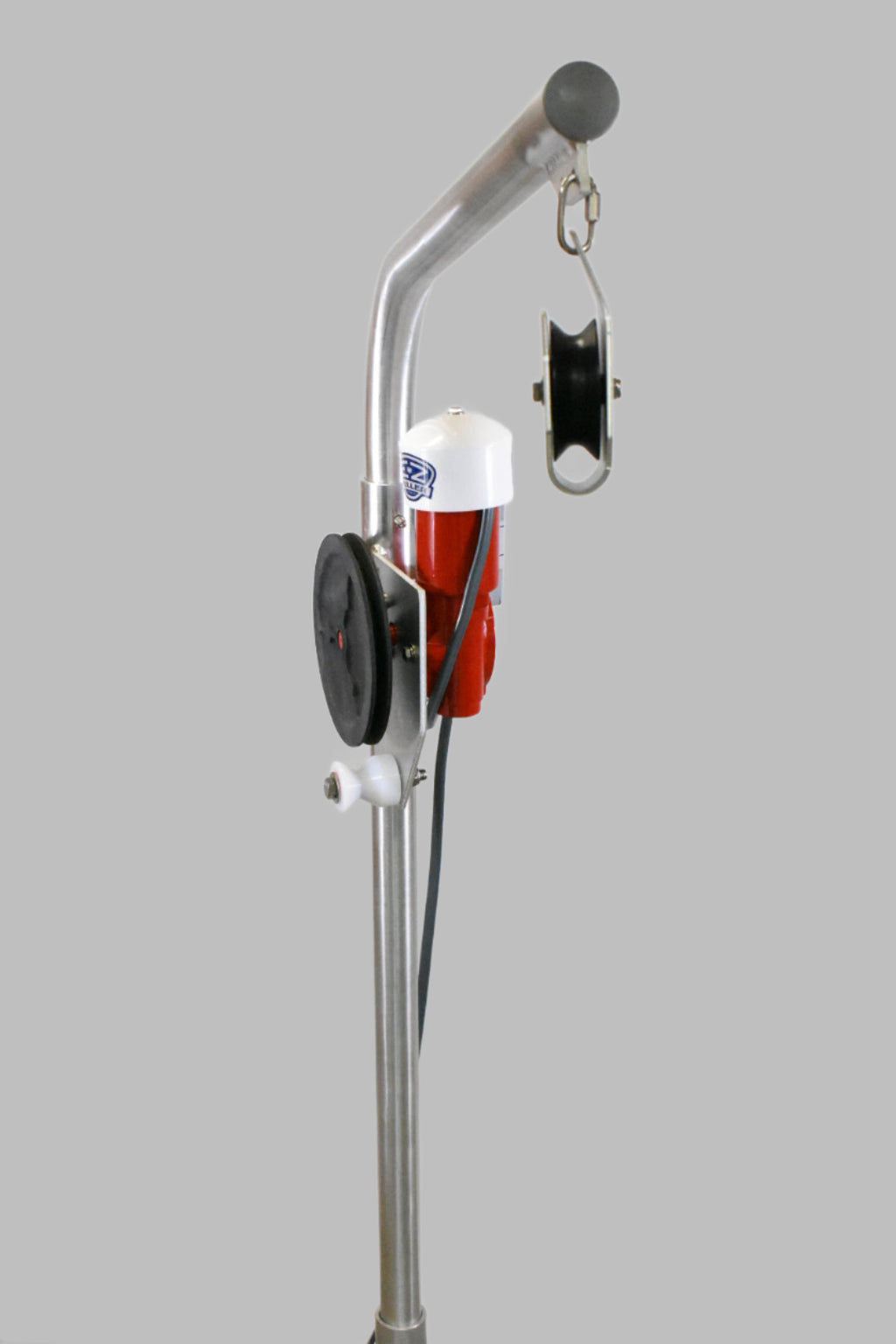

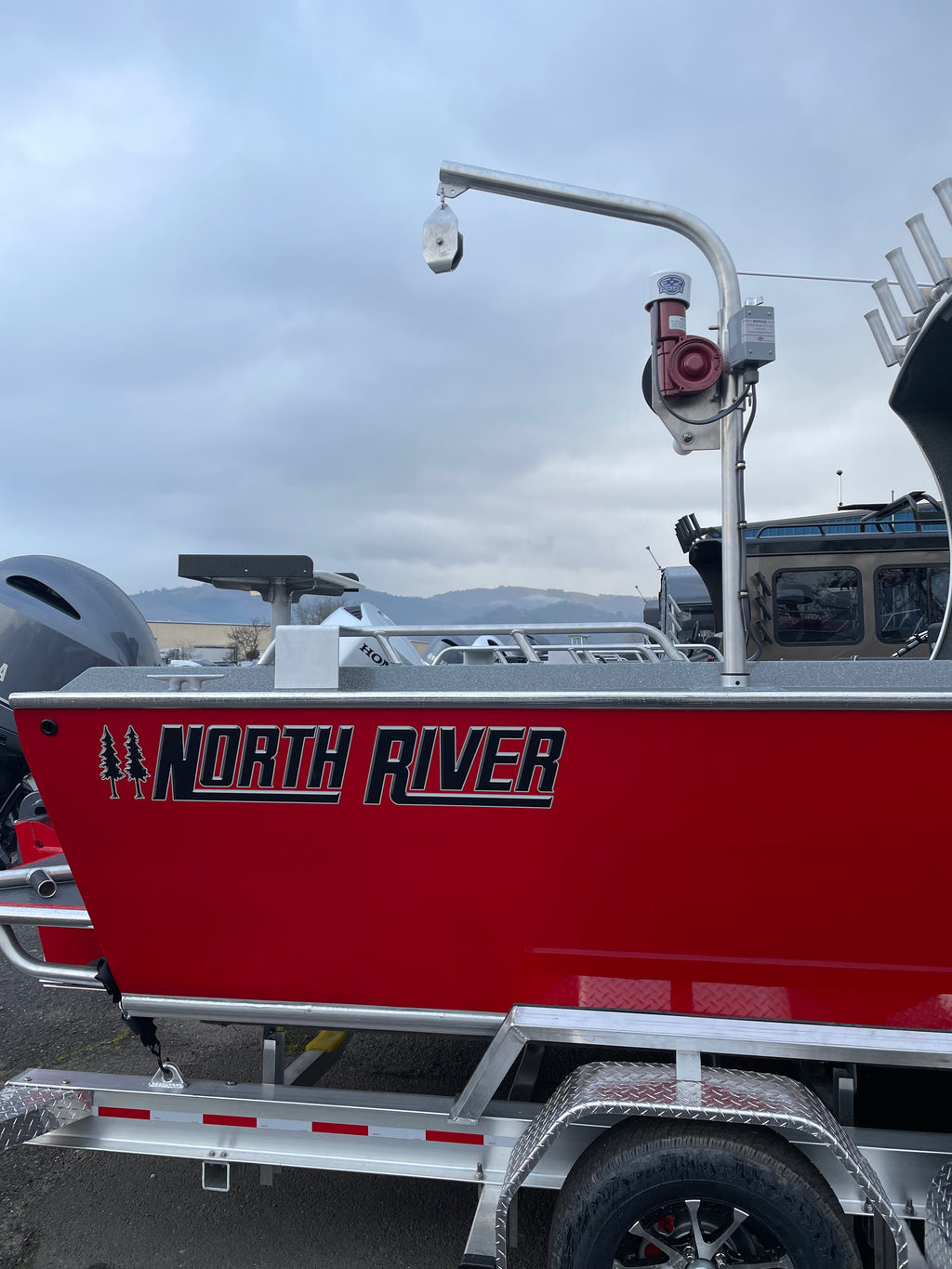

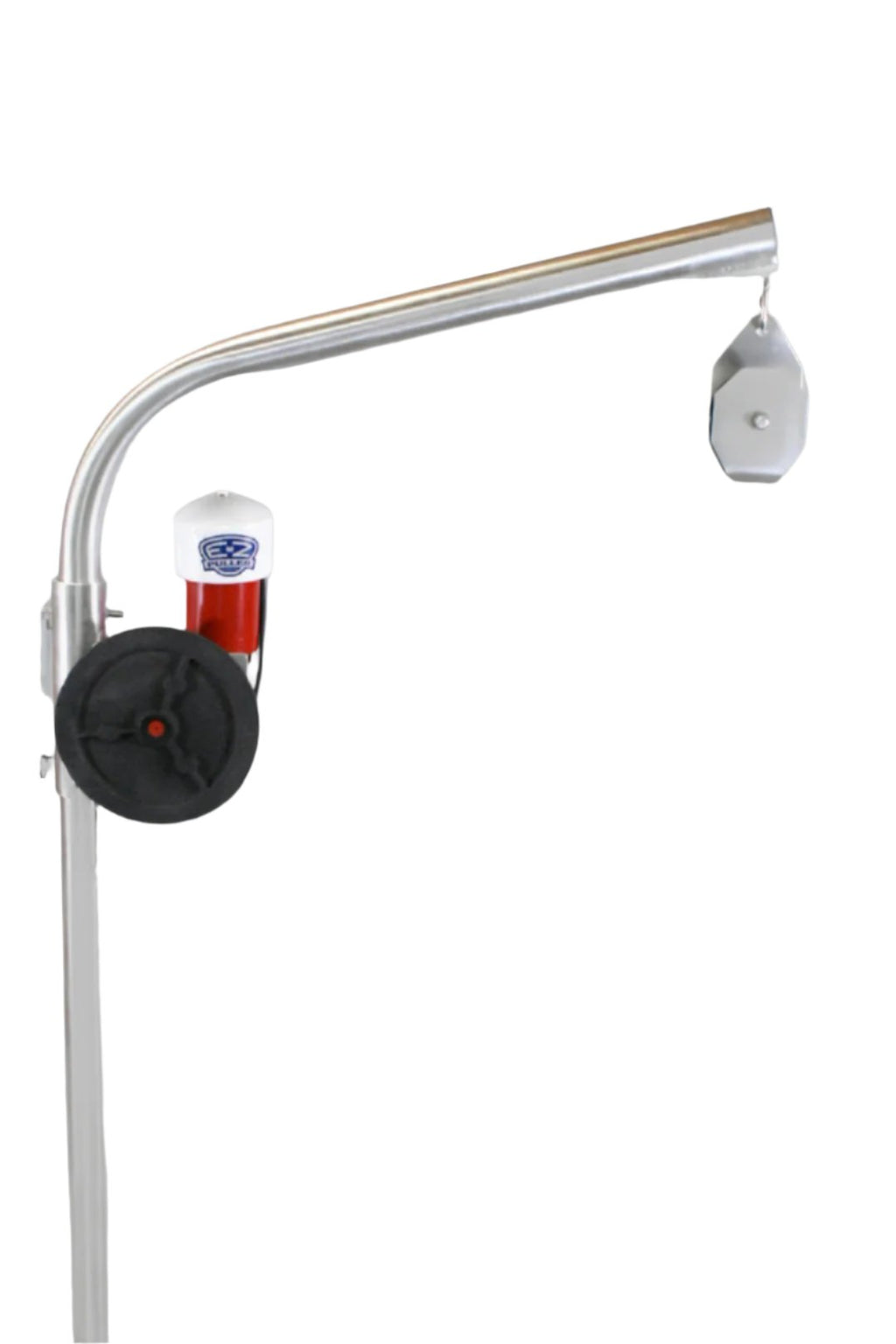

The 3-piece EZ Puller Inc. - "E40"is our Standard height 1.5” Sch 40 Electric Pot Hauler. The package includes our time tested water resistant 1.5 hp 601 Red express 12v motor / Permanently sealed cast aluminum gearbox containing roller bearings, 1 piece steel and bronze alloy gears in a synthetic oil bath for exceptional strength and long life. High amp 12v on/off switch assembly with a 14 ft. 8-gauge harness and 100 amp auto reset circuit breaker assembly. Anodized Aluminum sheave with machined UHMW v-roller assembly, EZ Puller open face aluminum crab block with s/s quick link and s/s davit pin.

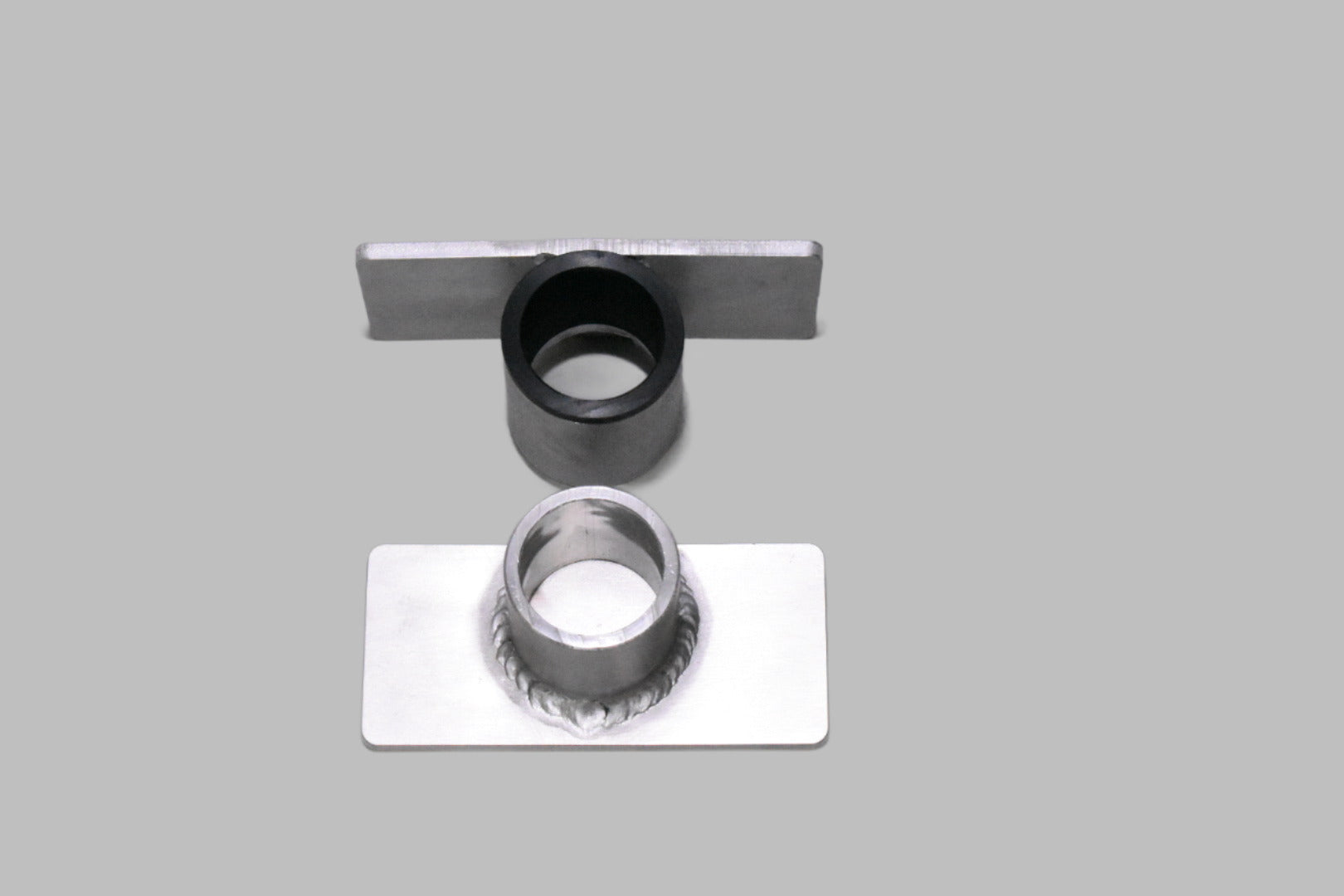

Includes our AMS104C Sleeved Flat Deck and AMS106 UHMW sleeved Gunnel Mounts.
Pulls line at up to 140 feet per minute with a lift capacity of 140lbs.
It accepts line sizes ¼” to ⅜”.
** Important mounts must have a min 22" spacing between upper and lower. **
Pulls line at 120 feet per minute with a pulling capacity of 140 pounds. It accepts line sizes ¼” to ⅜”.
Best for fishing the shallower bays and inlets.
The EZ-E40 davit unit is 65“ tall and has a reach of 27“.
The unit comes with a 1 year manufacturer defect warranty.
Does not include fasteners for installing the mounts.
The EZ-E40 is our entry-level electric pot hauler, built for lighter-duty applications in shallow bays and inlets. Constructed from 1.5-inch Schedule 40 pipe, it stands 65" tall with a 27" reach, offering a more affordable option for operators who don't need the heavier Schedule 80 construction of our commercial-grade models.
Power comes from a 1.5 hp 601 Red Express 12V water-resistant motor. It pulls line at 140 feet per minute with a load capacity of 140 lbs, handling line from ¼" to ⅜". It ships with AMS104C Sleeved Flat Deck and AMS106 UHMW Sleeved Gunnel mounts included (fasteners not included, minimum 22" spacing required between upper and lower mounts) — browse our davit mounts for replacement or alternate mounting options.
The permanently sealed cast aluminum gearbox houses one-piece steel and bronze alloy gears in a synthetic oil bath, paired with an anodized aluminum sheave with a machined UHMW V-roller assembly and an open-face aluminum crab block with stainless steel quick link and davit pin. Wiring runs through a 14-foot 8-gauge harness with a high-amperage 12V on/off switch assembly and a 100-amp auto-reset circuit breaker; explore our full range of electrical accessories to complete your setup.
Whether you're running crab, shrimp, or lobster gear, browse our full selection of pots and traps built to work with this hauler's line speed and capacity.
Backed by a 1-year manufacturer defect warranty. Also available in a port-side configuration.
Compare Models
Need heavier-duty Schedule 80 construction for tougher conditions? The EZ-E80 Standard 65" Electric Hauler offers the same footprint with a stronger build.
Need more pulling power and load capacity? Step up to the PRO-1 1.5" SCH80 Electric Hauler.
On a budget or want a no-power option? Check out our manual pot haulers.
This Puller like all of our pullers can made in a Port side configuration
