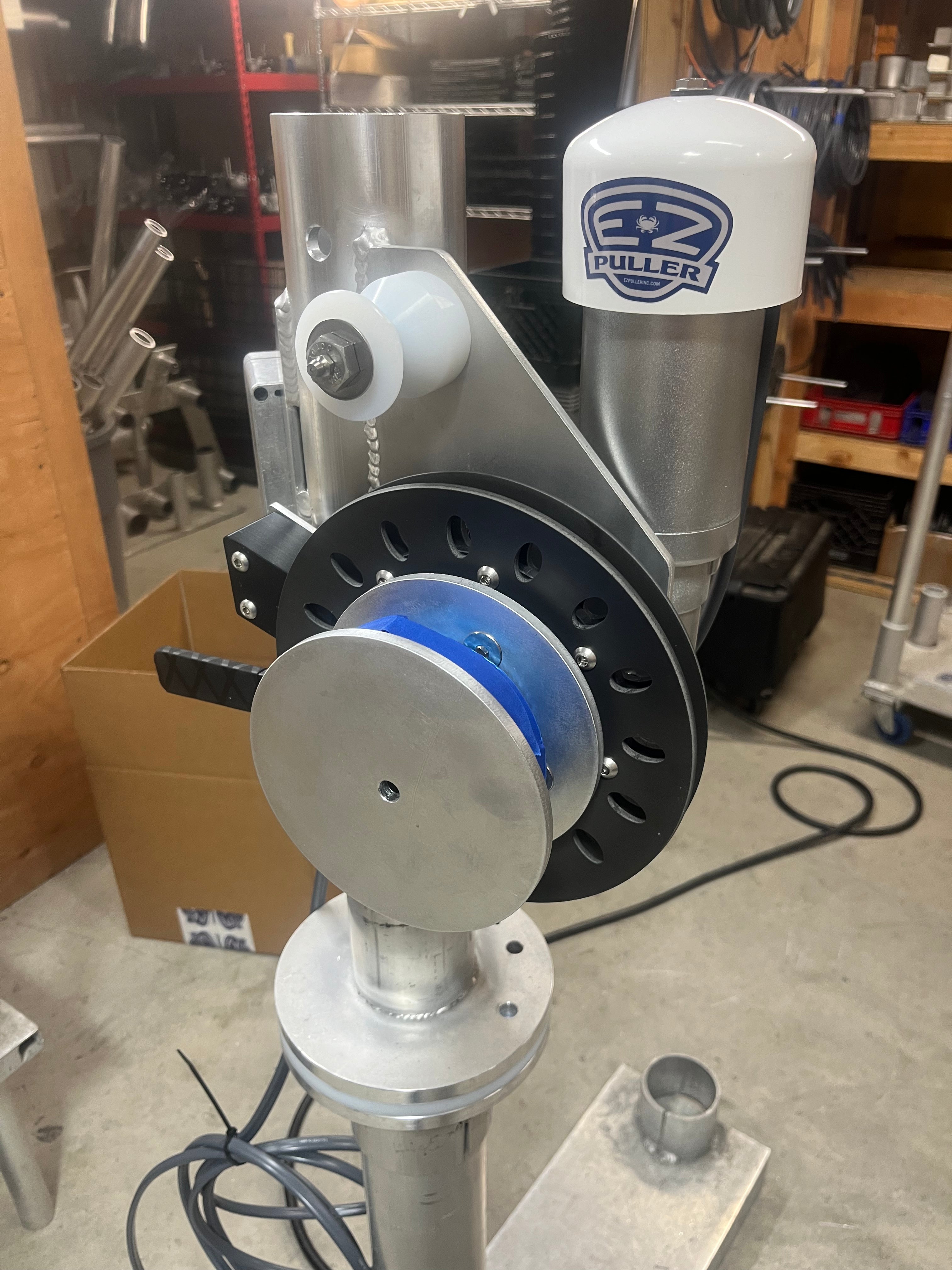

The 3-piece EZ Puller - "BS25" is our HIGH Capacity 2.5” Sch 80 Double Wall extended Electric Hauler.
The package includes our time tested water resistant 2.4 hp 901 Silver express 12v DC motor. A permanently sealed cast aluminum gearbox containing steel worm gear and bronze alloy worm drive gear with roller bearings, for unsurpassed strength, in a sealed synthetic oil bath for long life.

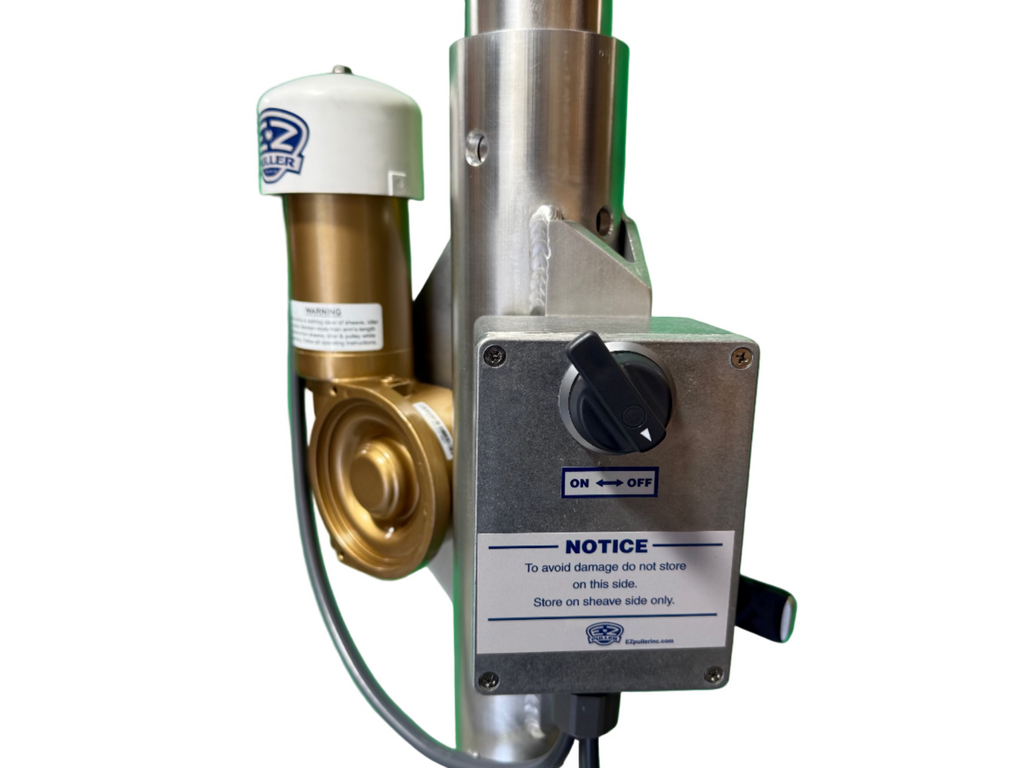

High amp 12v IP67 rated waterproof reversing switch assembly mounted in an aluminum water proof box with a 14 ft. 8-gauge wire harness and 100 amp re-settable circuit breaker assembly.
This unit can be configured with our PRO SERIES Power Grip Anodized Aluminum sheave for hauling heavy pots/traps with grease-able machined UHMW v-roller assembly, paired with a open face cast aluminum crab block with s/s quick link and s/s davit pin for pulling pots/traps. In this configuration it would also have our new PRO SERIES line tension device and new UHMW line stripper.

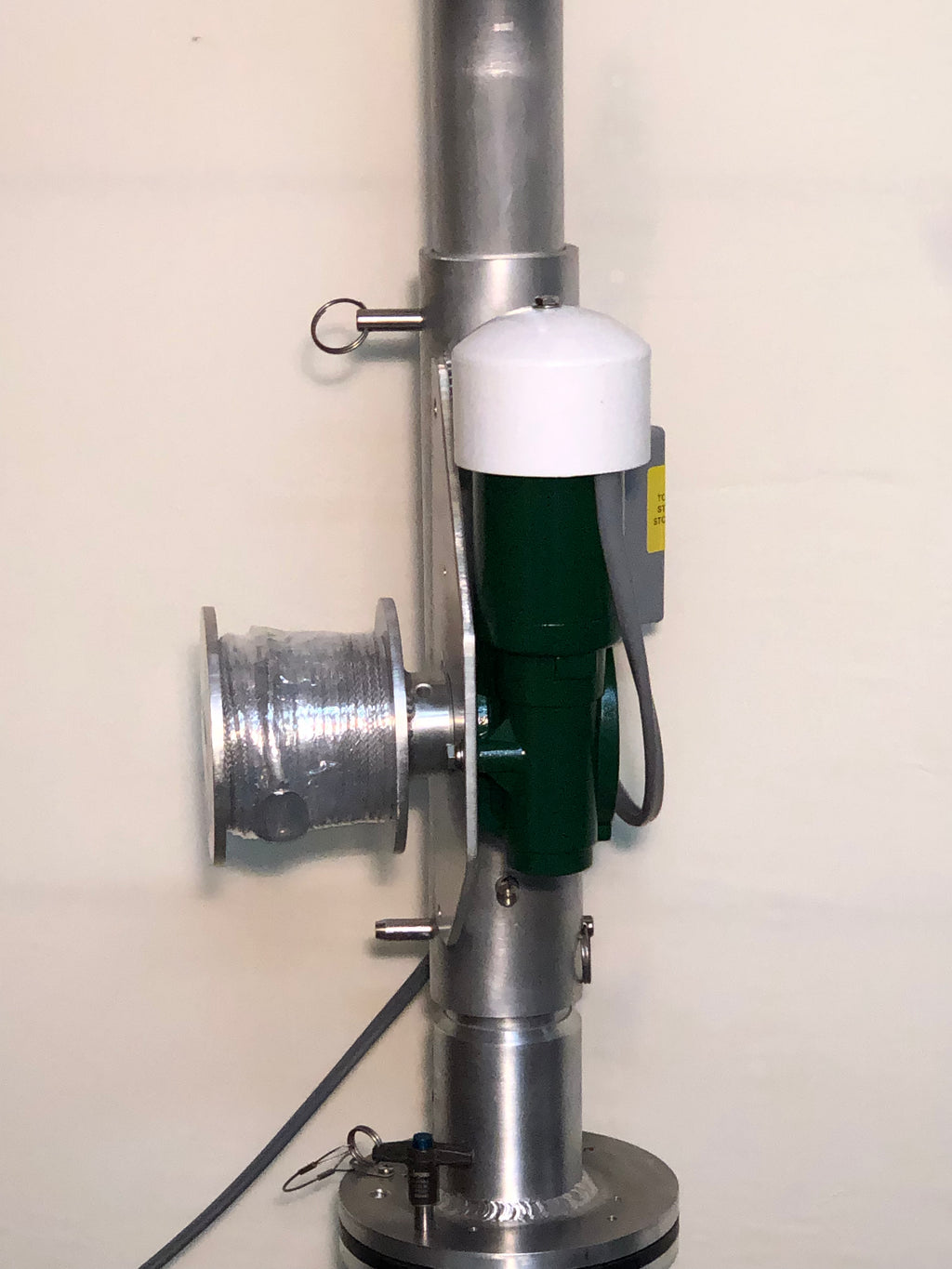

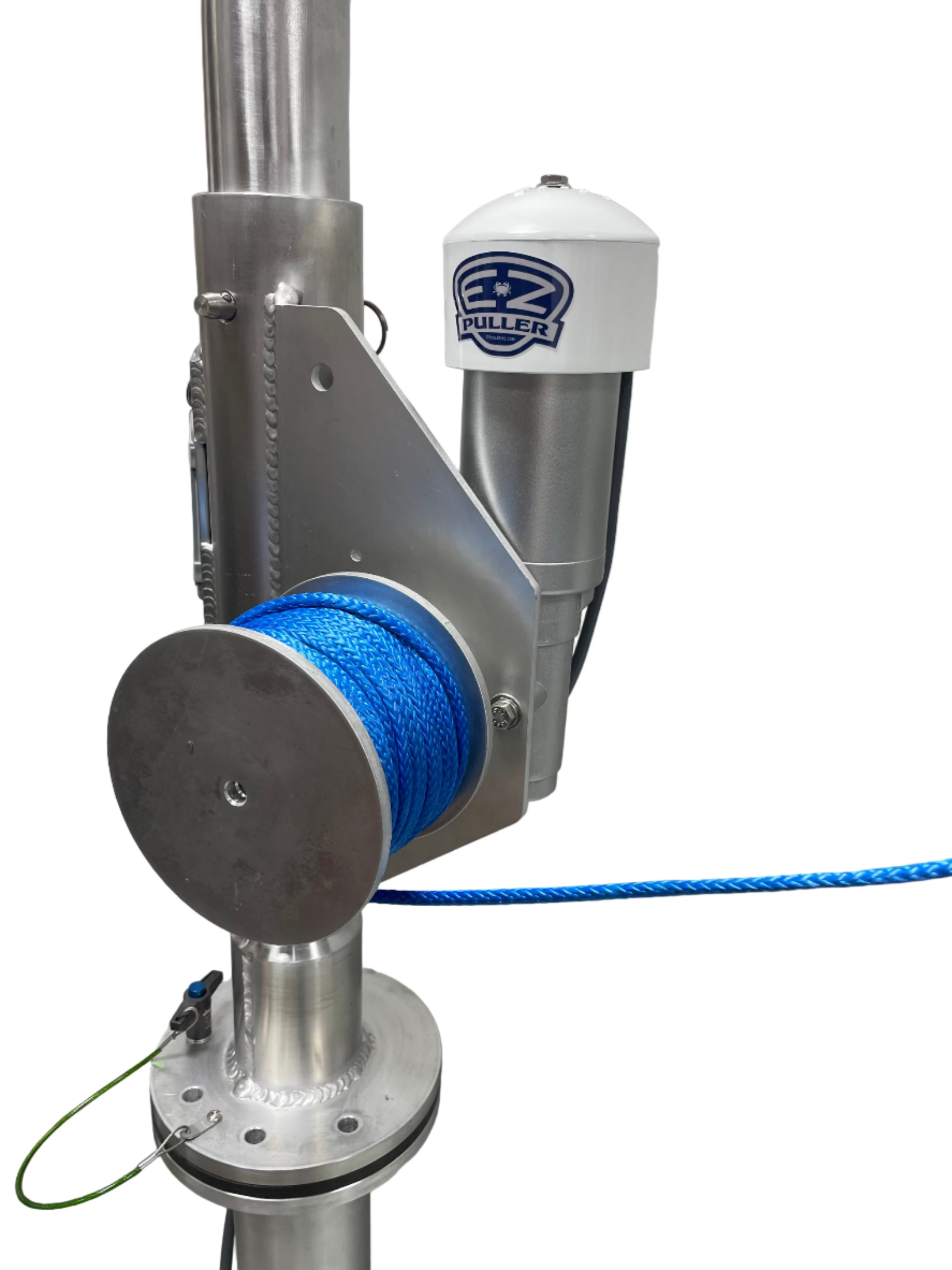

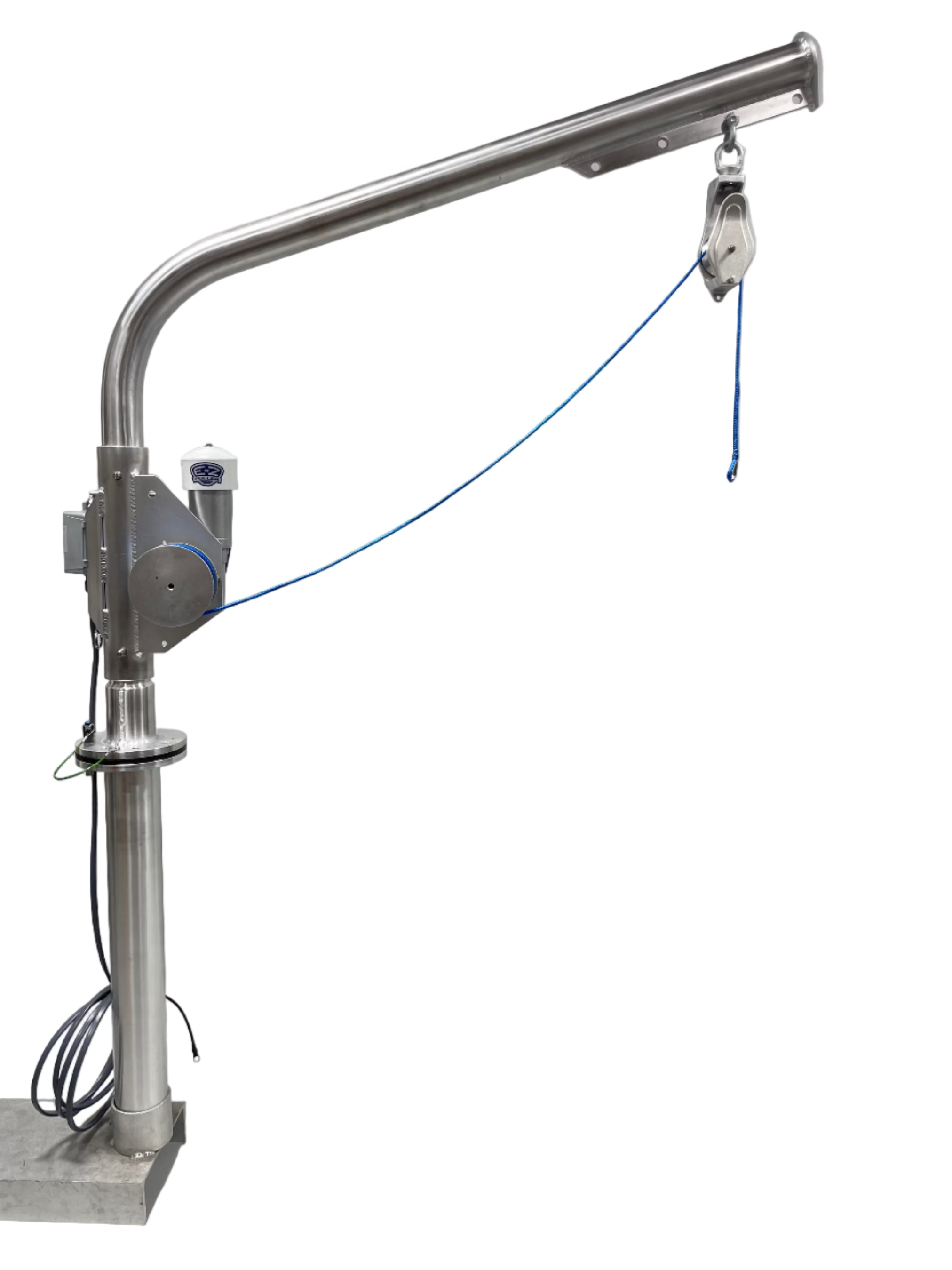

Or we can configure this Davit with our 6" Drum and Dynema line, paired with a special cast Aluminum 1000lb open faced block for heavy lifting up to 500lb.
We have designed the BS25 with a 8" diameter dual flange locking collar with UHMW wear plates and bushings to provide ease of rotation with loads.

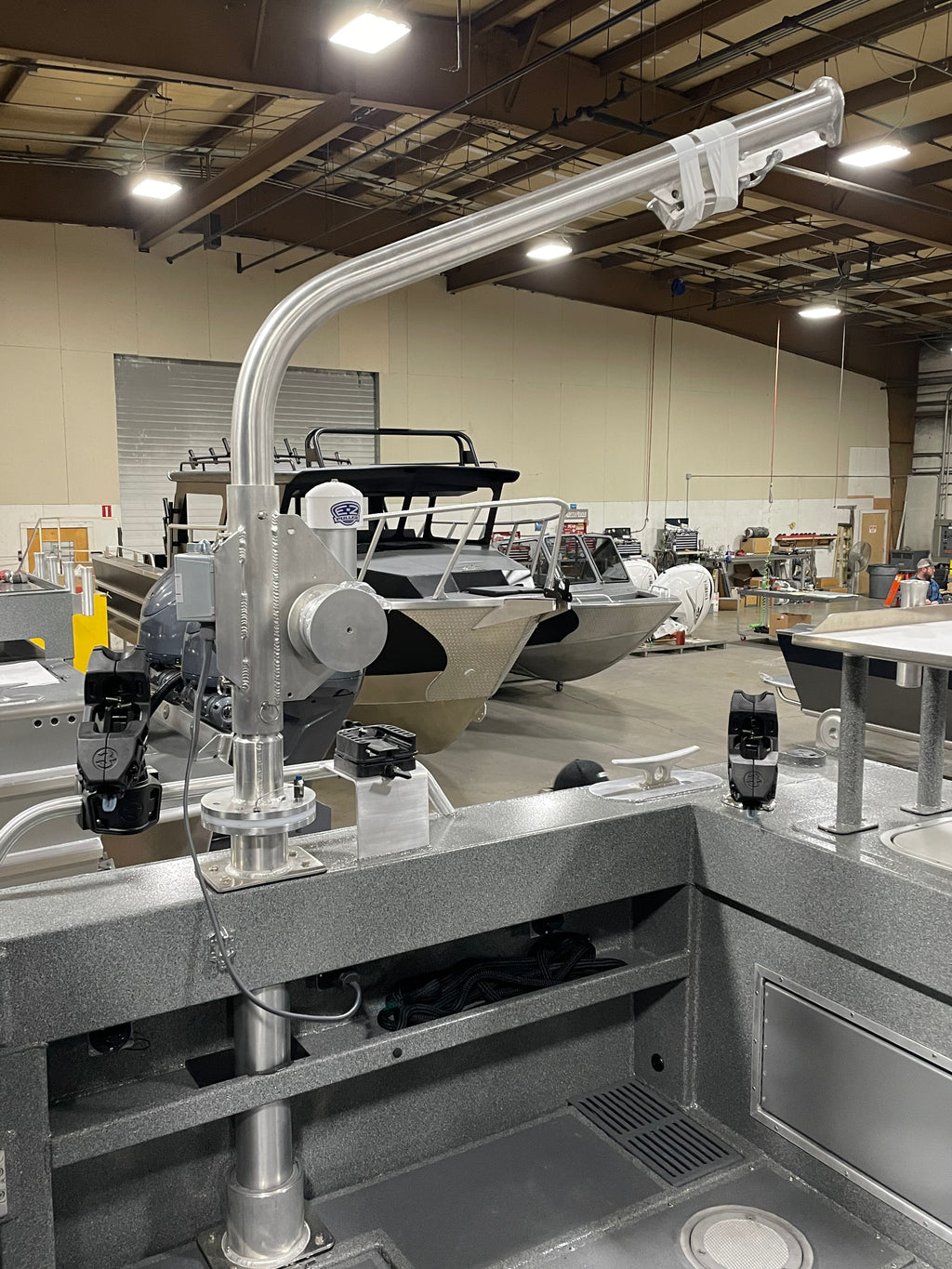

This unit is sold as a weld in unit in for new Aluminum Boats but can be configured as a bolt in unit as well for most existing aluminum boats or fiberglass boats. Please call so that we can discuss your use.

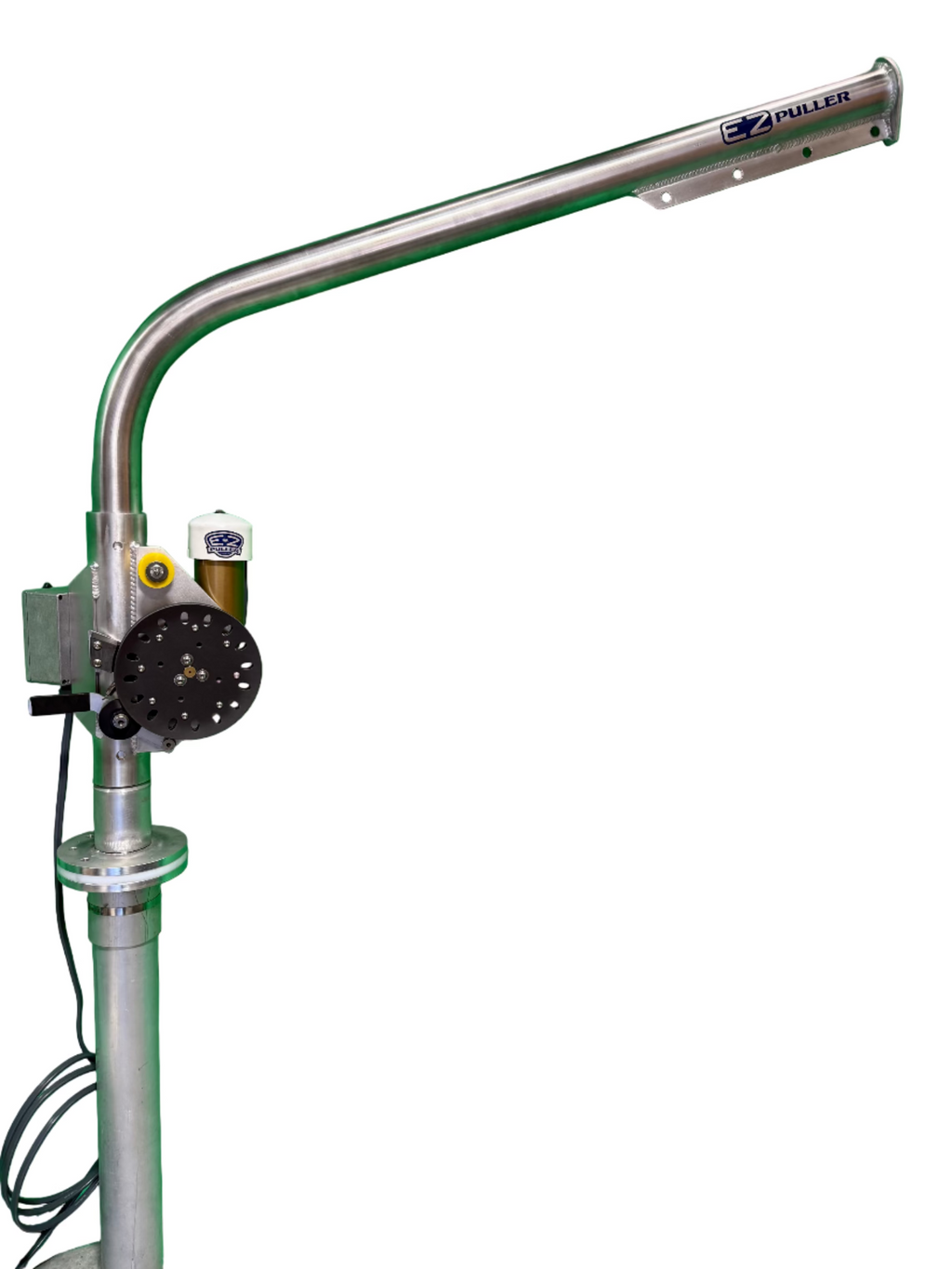

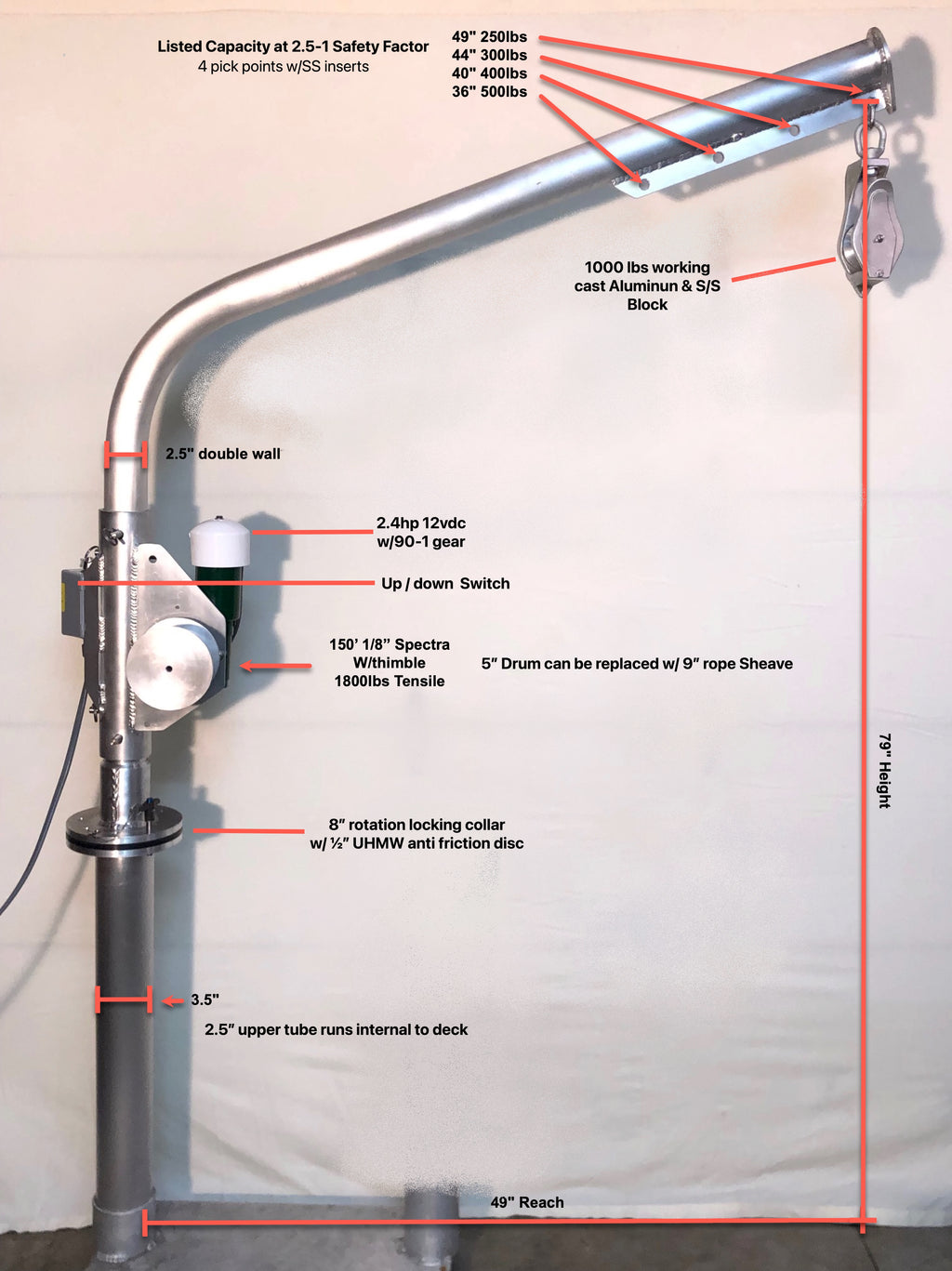

The EZ-BS25 davit unit is 79“ tall and has a reach of 49“.
As always can be configured for Port side use as well.
The unit comes with a 1 year manufactures defect warranty.
The BS25 is our heaviest-duty hauler, built for commercial fishing operations that need serious lifting power for pots, traps, or drum-configured lines on aluminum or fiberglass boats. Constructed from 2.5-inch Schedule 80 double-wall pipe, it stands 79" tall with a 49" reach, and when configured with a drum and Dynema line it lifts up to 500 lbs — well beyond our standard pot hauler capacity.
Power comes from a 2.4 hp 901 Silver Express 12V DC motor, water-resistant and paired with a high-amp IP67-rated waterproof reversing switch. The permanently sealed cast aluminum gearbox houses a steel worm gear and bronze alloy worm drive gear on roller bearings, running in a sealed synthetic oil bath. In pot/trap configuration it uses our PRO SERIES Power Grip anodized aluminum sheave with a grease-able machined UHMW V-roller assembly, an open-face cast aluminum crab block, stainless steel quick link and davit pin, plus an 8" diameter dual flange locking collar with UHMW wear plates.
Wiring runs through a 14-foot 8-gauge wire harness with a 100-amp resettable circuit breaker, housed in a waterproof aluminum box. Note that mounts are sold separately as weld-in or bolt-in units — browse our davit mounts to find the right fit for your deck. Explore our full range of electrical accessories to complete your setup.
Whether you're running crab, shrimp, or lobster gear, browse our full selection of pots and traps built to work with this hauler's line speed and capacity.
Backed by a 1-year manufacturer defect warranty.
Compare Models
Don't need drum capability or the extra size? The PRO2 2" SCH80 Electric Hauler offers strong davit-rated performance in a smaller footprint.
Running lighter gear on a smaller boat? Check out the EZ-E80X 1.5" Extended Height Electric Hauler.
On a budget or want a no-power option? Check out our manual pot haulers.
Does not include the mounts.
